– USB RS-232 Serial Port
[ec_addtocart productid=”261″]
Description:

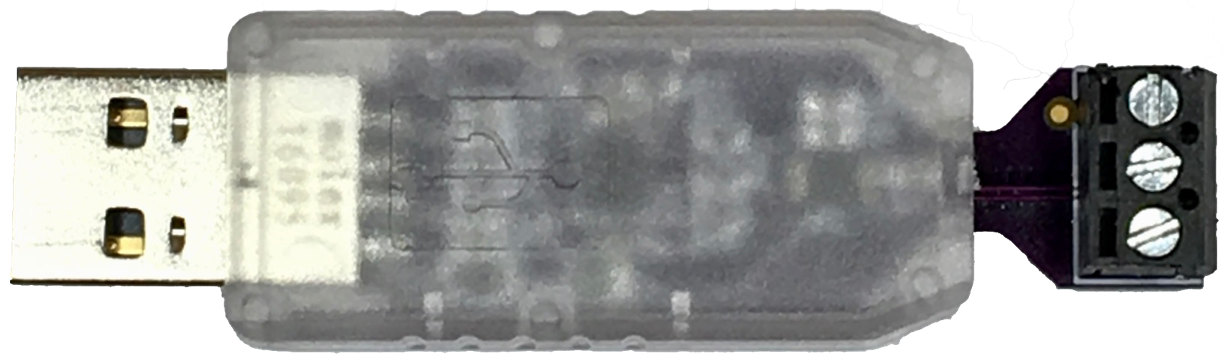

USB RS-232 Serial Port – a 3 wire (Shield/Sig Gnd, Rx, Tx) Serial Port.
Features:
- Completely self-contained simple and compact form factor.
- Designed to connect RS-232 3 wire (Shield/Sig Gnd, Rx, Tx) to any P.C. as a standard Serial Port.
- Baud Rates: Min: 1200bps, Max:230400bps.
- LEDs indicating Transmit (Green) and Receive (Red) activity.
- Field wiring termination block for 26AWG to 16AWG wire.
- No special device drivers necessary, uses OS provided drivers (Windows, macOS, Linux, FreeBSD).
- Windows provided drivers, (Linux, and FreeBSD with provided devd config file), present the same Com Port number, no matter which USB port it is plugged into.
- Dimensions X: 2.75 inches, Y: 1.75 inches
CutSheet:
