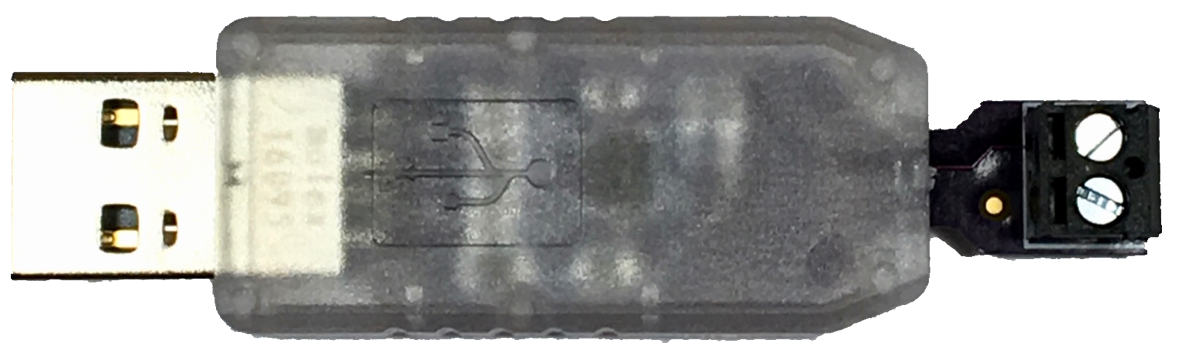

– USB Digital Input Monitor
[ec_addtocart productid=”260″]
Description:
USB Digital Input Monitor – Through the use of a Dry Contact Closure, this is an inexpensive way to monitor the On / Active or Off / Inactive state of something.
Features:
- Completely self-contained simple and compact form factor.
- Designed to connect to any P.C. as a standard Serial Port.
- Input state is reflected in the Serial Port’s DTR signal.
- Field wiring termination block for 26AWG to 16AWG wire.
- No special device drivers necessary, uses OS provided drivers (Windows, macOS, Linux, FreeBSD).
- Windows provided drivers, (Linux, and FreeBSD with provided devd config file), present the same Com Port number, no matter which USB port it is plugged into.
- Dimensions X: 2.75 inches, Y: 1.75 inches
