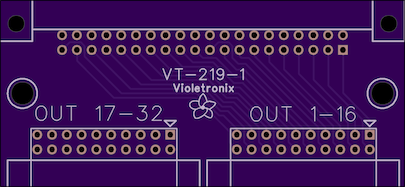

– Omron Input module connector (cableless) splitter
[ec_addtocart productid=”280″]
Description:
Plugs directly into Omron Output module 40 pin, 32 point connector, eliminating the need for a XW2Z-nnnB cable, and splits the signals into two separate sets of 16 point, 20 pin connectors suitable for connection to Phoenix PLC-V8/FLK14/OUT/M “System connection” 14 pin connector.
Features:
- I/O point common isolation is maintained from the 40 pin connector through to the 20 pin connector.
- Board material: Industry standard FR4 94-V0 fire resistant self extinguishing fiberglass epoxy.
- Dimensions X:1.3 inches, Y: 2.735 inches
Note:
- Compatible output modules; CS1W-OD231, CS1W-OD261.
- For Input modules such as CS1W-ID231, CS1W-ID261, C200H-ID111, use the VT-218 part.
Cut Sheet:
