– Omron Input module connector (cableless) splitter
[ec_addtocart productid=”253″]
Description:

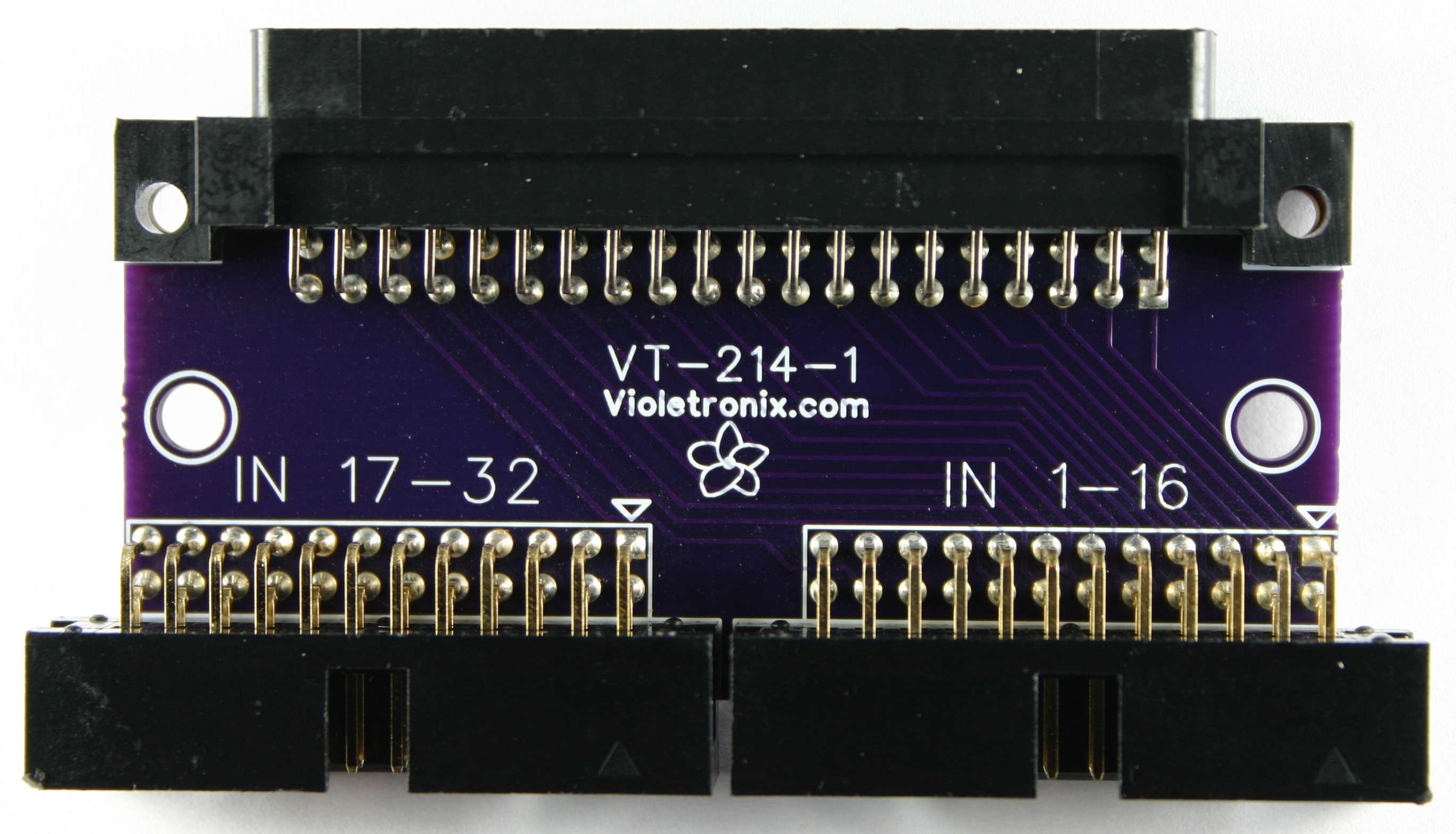

Plugs directly into Omron Input module 40 pin, 32 point connector, eliminating the need for a XW2Z-nnnB cable, and splits the signals into two separate sets of 16 point, 24 pin connectors suitable for connection to the Tech Works 16 Channel Intercom Relay board, model ICR-116. ( http://www.tech4people.com/catalog/products/icr-116/ ).
Features:
- I/O point common isolation is maintained from the 40 pin connector through to the 24 pin connector.
- Board material: Industry standard FR4 94-V0 fire resistant self extinguishing fiberglass epoxy.
- Dimensions X:1.3 inches, Y: 2.735 inches
Note:
- Compatible input modules; CS1W-ID231, CS1W-ID261, C200H-ID111.
- For Output modules such as CS1W-OD231, CS1W-OD261, use the VT-215 part.
Cut Sheet:
