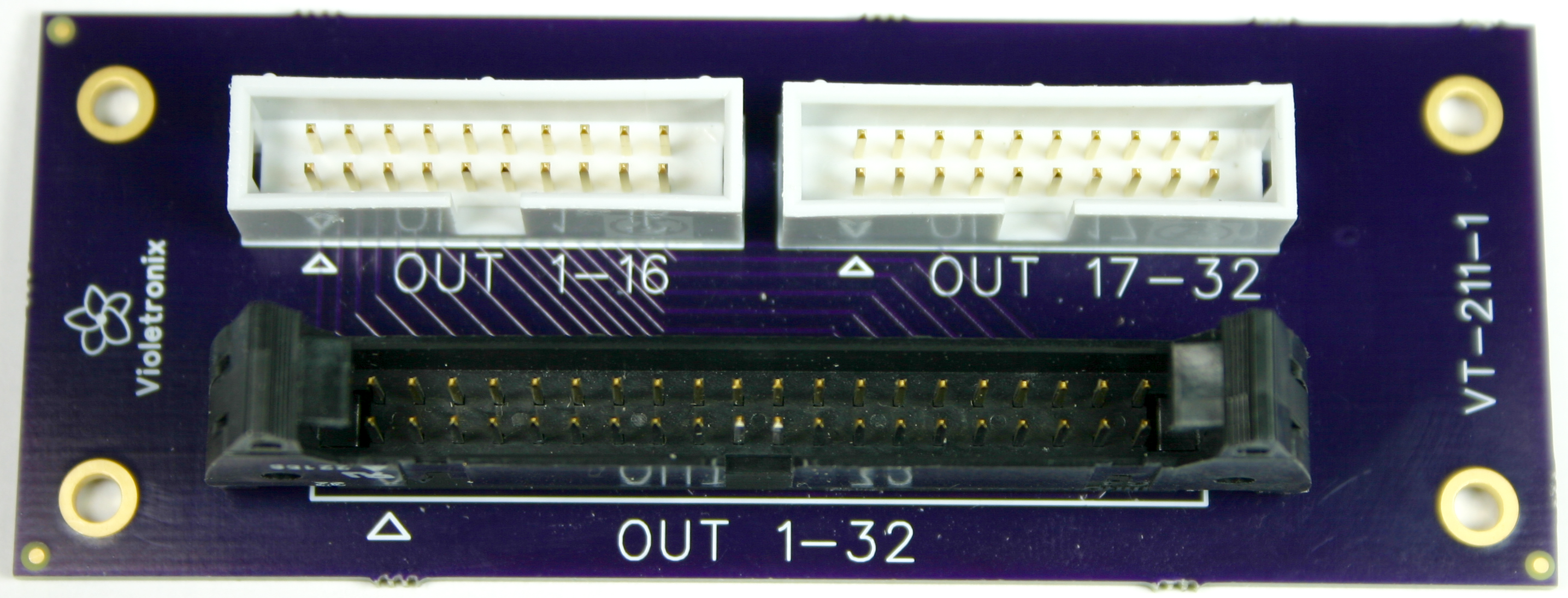

– Omron Output module cable splitter
[ec_addtocart productid=”249″]
Description:
Splits Omron XW2Z-nnnB 40 pin, 32 point Output module cable into two separate sets of 16 point, 20 pin connectors.
Features:
- I/O point common isolation is maintained from the 40 pin connector through to the 20 pin connector.
- Long latching levers for J3.
- Board material: Industry standard FR4 94-V0 fire resistant self extinguishing fiberglass epoxy.
- Dimensions X:1.5 inches, Y: 3.950 inches
- Designed for optional Wago 288-600 DIN rail mounting tray.
- #6 Stud mounting holes
Note:
- Compatible output modules; CS1W-OD231, CS1W-OD261.
- For Intput modules such as CS1W-ID231, CS1W-ID261, C200H-ID111, use the VT-210 or VT-212 part.
Cut Sheet:
