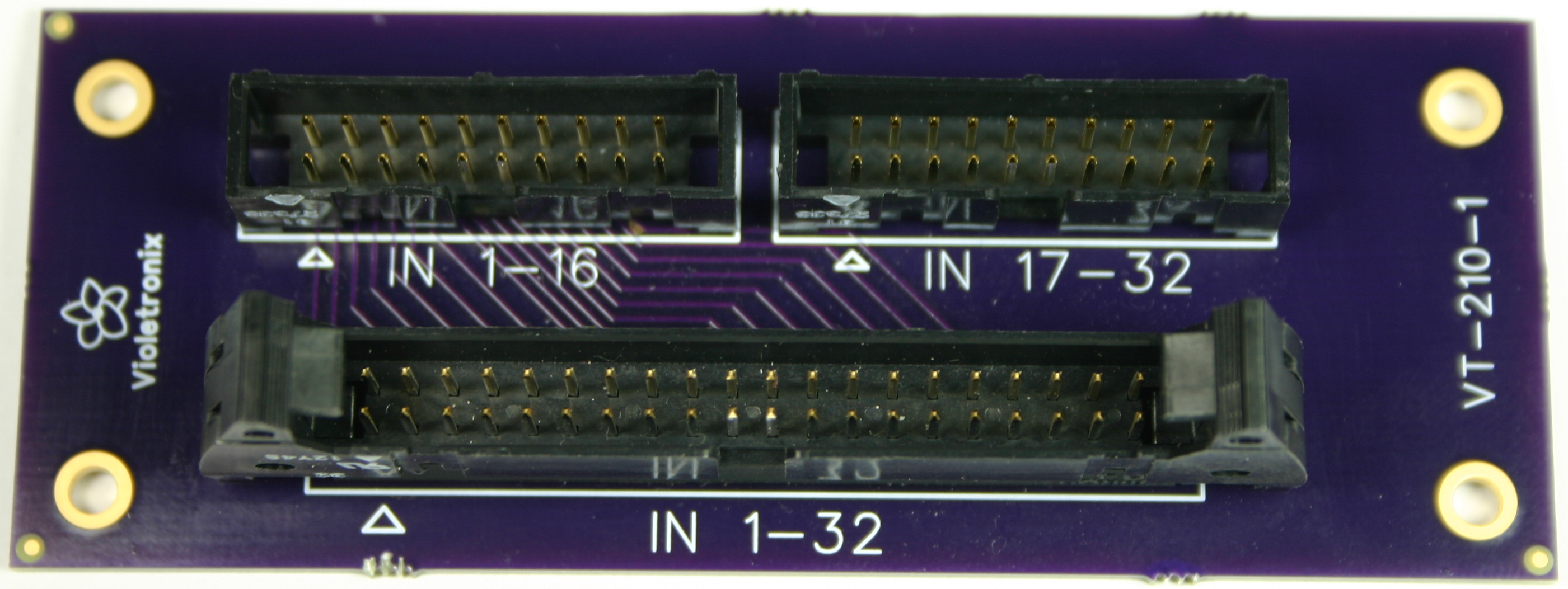

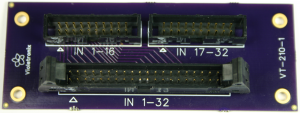

– Omron Input module cable splitter
[ec_addtocart productid=”248″]
Description:
Splits Omron XW2Z-nnnB 40 pin, 32 point Input module cable into two separate sets of 16 point, 20 pin connectors.
Features:
- I/O point common isolation is maintained from the 40 pin connector through to the 20 pin connector.
- Long latching levers for J3.
- Board material: Industry standard FR4 94-V0 fire resistant self extinguishing fiberglass epoxy.
- Dimensions X:1.5 inches, Y: 3.950 inches
- Designed for optional Wago 288-600 DIN rail mounting tray.
- #6 Stud mounting holes
Note:
- Compatible input modules; CS1W-ID231, CS1W-ID261, C200H-ID111.
- For Output modules such as CS1W-OD231, CS1W-OD261, use the VT-211 or VT-213.
Cut Sheet:
