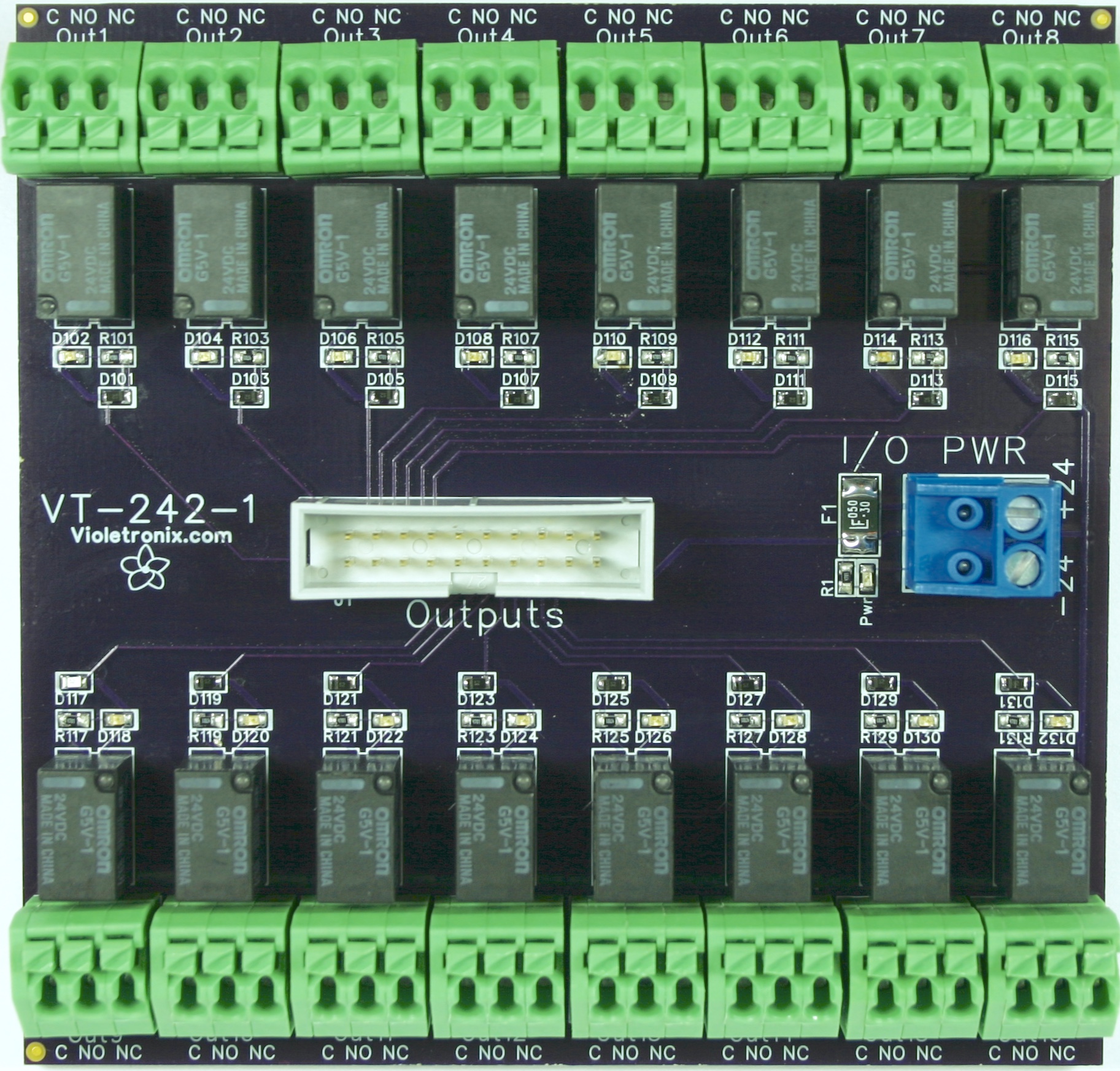

– 20 pin Output break out board
[ec_addtocart productid=”256″]
Description:
- Breaks out a 20 pin Output cable to discrete wire termination blocks, suitable for low voltage interfacing, with interposing dry contact Form C (Common, Normally Open, and Normally Closed) relays.
Features:
- Designed to directly attach to either of the Output VT-211 or VT-213 20 pin connector breakout boards, or the MO-200 – high density 64 point Input / Output board.
- LEDs indicating Output relay (Red).
- Screw-less field wiring termination blocks for 24AWG to 16AWG wire.
- Self healing I/O Power fusing.
- Detachable I/O power connector.
- Consumes < 1 ampere with all outputs active.
- Designed for mounting using Wago 288-600 DIN rail tray. See page 2 for Wago detail.
- Dimensions X: 4.05 inches, Y: 3.95 inches
- Board material: Industry standard FR4 94-V0 fire resistant self extinguishing fiberglass epoxy.
Note:
- For 20 pin Inputs breakout, see VT-241.
