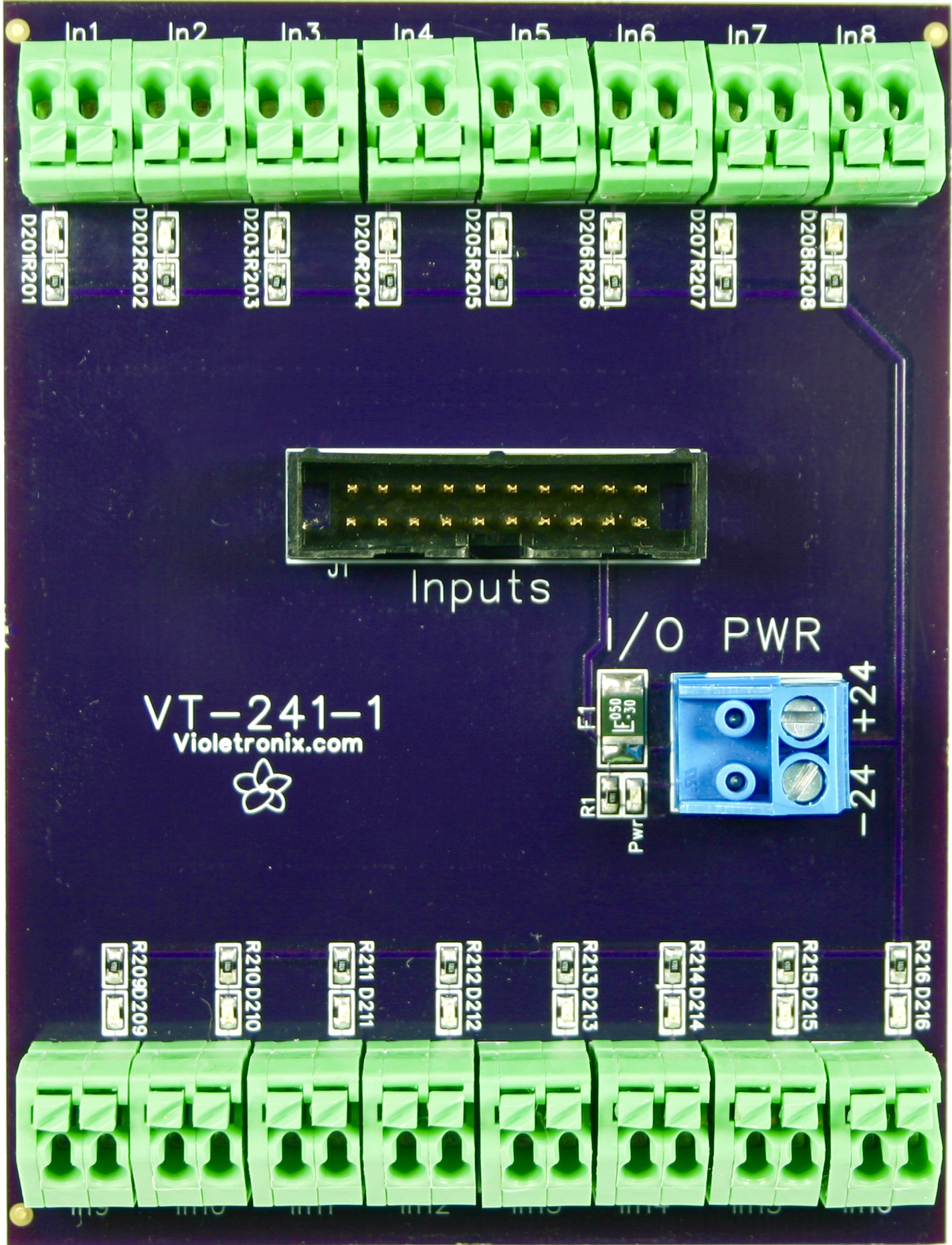

– 20 pin Input break out board
[ec_addtocart productid=”255″]
Description:
-
Breaks out a 20 pin Input cable to discrete wire termination blocks, suitable for low voltage interfacing.
Features:
- Designed to directly attach to any either of the Input VT-210 or VT-212 20 pin connector cable splitter boards, or the MO-200 – high density 64 point Input / Output board.
- LEDs indicating Input (Green) activity.
- Screw-less field wiring termination blocks for 24AWG to 16AWG wire.
- Self healing I/O Power fusing.
- Detachable I/O power connector.
- Designed for mounting using Wago 288-600 DIN rail tray. See page 2 for Wago detail.
- Dimensions X: 3 inches, Y: 3.95 inches
- Board material: Industry standard FR4 94-V0 fire resistant self extinguishing fiberglass epoxy.
Related:
- For 20 pin Outputs breakout, see VT-242.
Cut Sheet:
