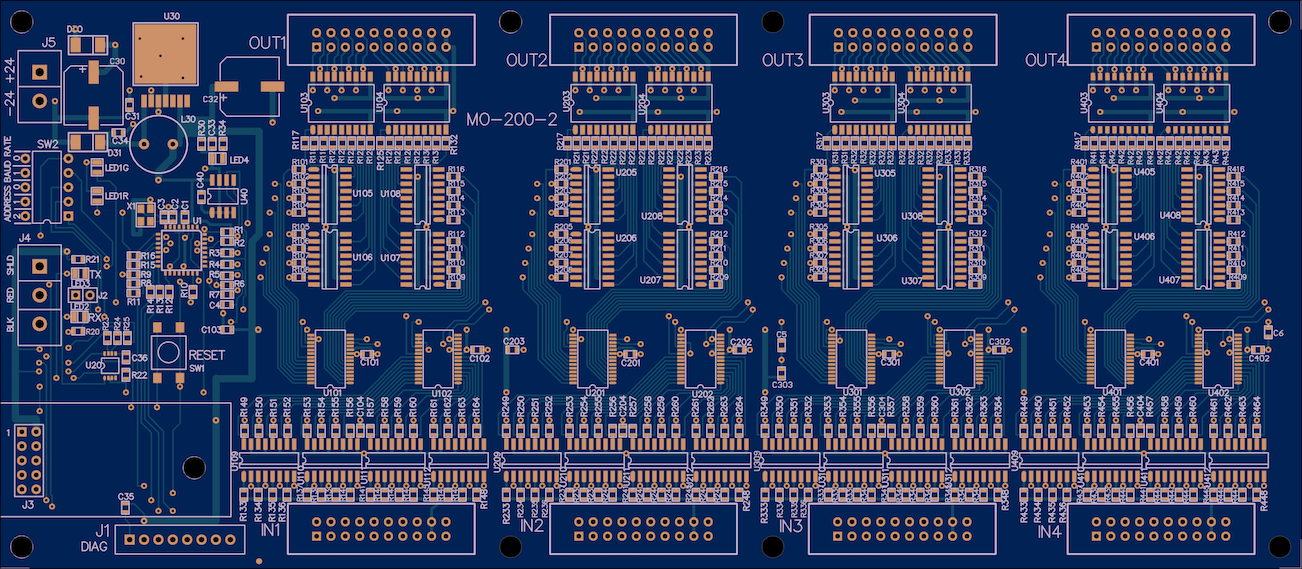

– high density 64 point Input / Output board.
[ec_addtocart productid=”269″]
Description:
- Provides 64 each Digital optically isolated Inputs and optically isolated high current Outputs, controlled/monitored via RS-485 Modbus RTU serial port.
Features:
- 4 each, color coded Inputs (black) and Outputs (white) – 20 pin ribbon cable headers – Sinking wiring configuration.
- High-current (500 ma each, 2.5A max per group of 8) outputs with Clamp Diodes for direct termination to coil loads (relays).
- Dip Switch selectable RTU addresses 1-8.
Dip Switch selectable Baud rates 9600, 19200, 115200, and 230400. - Auto-Output-Disable after polling inactivity of 5 seconds or more.
- Serial RS-485 termination jumper.
- Ethernet enabled in combination with VT-280 module.
- Field updatable firmware.
- Power presence LED (Green).
- Operational Status LEDs, Green for normal activity, Red for error conditions.
- Serial Transmit and Receive activity LEDs (Yellow).
- Board material: Industry standard FR4 94-V0 fire resistant self extinguishing fiberglass epoxy.
- Dimensions X:9 inches, Y: 3.950 inches
- Designed for optional Wago 288-600 DIN rail mounting tray.
- #6 Stud mounting holes
Related:
- VT-241 – 16 point 20 pin Input break out board.
- VT-242 – 16 point 20 pin Output break out board.
- VT-243 – 16 Channel 25v Intercom Termination, Control and Monitoring.
- VT-244 – 16 Point High Voltage/Amperage Relay Control and Monitoring.
Note:
- The MO-200 is presently not for sale to the general public. However, we do repair them.
- The VT-270 is a planned drop-in compatible replacement. For more information Contact us.
Cut Sheet:
